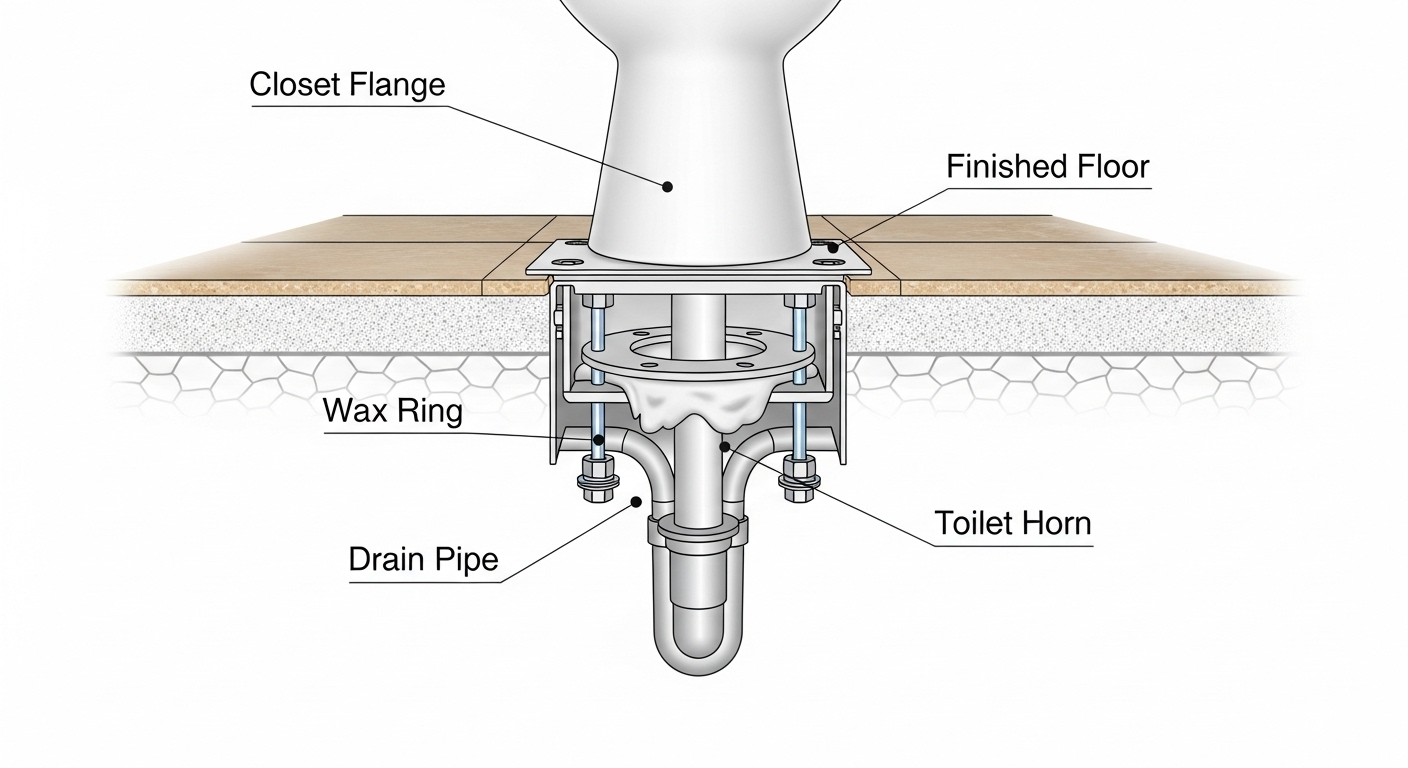

A closet flange, also known as a toilet flange, is the critical pipe fitting that connects your toilet to the home’s drainage system and secures it to the floor. This unassuming component plays a vital role in maintaining a healthy, odor-free bathroom. When functioning correctly, it creates a secure, watertight seal that prevents sewer gases from entering your home and ensures wastewater flows directly into the drainpipe without leaks.
A compromised or broken flange is a common plumbing issue that can lead to a wobbly toilet, leaks damaging your subfloor, and unpleasant odors. Learning how to replace a closet flange is an invaluable DIY skill that can save you significant money on plumbing services. This comprehensive guide will walk you through the entire process, from diagnosis to completion, ensuring a professional, long-lasting result.
Table of Contents
Signs You Need a Closet Flange Replacement
Before beginning the replacement process, it’s crucial to confirm that the flange is indeed the source of the problem. Several telltale signs indicate a failing closet flange:
- A Wobbling or Rocking Toilet: This is the most common indicator. If your toilet moves when you sit on it, the flange may no longer be securely fastened to the floor or may be cracked.
- Water Leaks at the Toilet Base: Noticeable water on the floor around the toilet after flushing is a strong sign that the wax ring seal has failed, often due to an uneven or broken flange.
- Persistent Sewer Odors: A broken seal can allow dangerous sewer gases to seep into your bathroom.
- Visible Damage: Upon inspection, you might see cracks in the flange, broken bolt slots, or severe corrosion, especially in older metal flanges.
If you observe any of these issues, a replacement is likely necessary to prevent further damage.
Tools and Materials You’ll Need
Gathering the right tools and materials before you start will make the process much smoother.
Tools:
- Adjustable wrench or channel-lock pliers
- Putty knife or scraper
- Screwdrivers
- Hacksaw or oscillating multi-tool (for cutting old pipes or bolts)
- Drill (if new screw holes are needed)
- Safety glasses and gloves
Materials:
- New closet flange (PVC, ABS, or cast iron)
- New wax ring with a horn (or a premium wax-free seal)
- Rust-proof stainless steel toilet bolts (Johni-bolts)
- Rust-proof screws for securing the flange to the floor
- Replacement water supply line (recommended)
- Rags and a bucket
How to Choose the Right Replacement Closet Flange
Selecting the correct flange is crucial for a successful repair. Your choice will primarily depend on your existing drainpipe material.
Table: Choosing the Right Toilet Flange for Your Pipe Material
Specialty Flange Options:
- Offset Flange: Used when the drainpipe is not centered; the hub can be rotated to allow for precise alignment of the toilet bolts.
- 45-Degree Flange: Helpful if there is an obstruction underneath the floor that prevents a straight vertical connection.
- Spigot Fit (Street) Flange: Used when the waste pipe is very close to the finished floor, as it can be cemented directly into the hub of a fitting.
- Flange Extension Kit: If your flange is sitting too low below the finished floor, an extension kit with spacers can raise it to the correct height without a full replacement.
Step-by-Step Guide to Replacing a Closet Flange
Warning: Always turn off the water supply at the valve behind the toilet before beginning. Flush the toilet to empty the tank and bowl, and use a sponge to remove any remaining water.
Step 1: Remove the Toilet
- Disconnect the water supply line.
- Remove the tank lid and set it aside safely.
- Unscrew the plastic caps covering the toilet bolts at the base.
- Using a wrench, loosen the nuts on the bolts.
- Carefully rock the toilet back and forth to break the wax seal, then lift it straight up. Have a rag ready to block the drainpipe and prevent sewer gases from escaping.
Step 2: Remove the Old Flange and Clean the Area
- Remove the old wax ring material from the drainpipe and the bottom of the toilet using a putty knife.
- Unscrew the old flange from the floor. If it’s a glued PVC flange, you will need to cut it out. Use a hacksaw blade to carefully cut the flange away from the pipe, ensuring you do not damage the drainpipe itself.
- Thoroughly clean the area around the pipe and the floor surface to ensure a clean workspace for the new installation.
Step 3: Dry-Fit and Install the New Flange
- For PVC/ABS Pipes: If you cut out the old flange, ensure the pipe is clean and dry. Apply PVC/ABS primer and cement to the pipe and the inside of the new flange’s hub, then push the flange firmly onto the pipe with a slight twisting motion. Hold it in place for a few seconds to set.
- For Twist-N-Set Flanges: Insert the flange into the pipe and turn the key or screws as directed to expand the internal gasket, creating a tight seal.
- Important: The bottom of the flange must be installed on top of the finished floor, not below it. This ensures the toilet horn can compress the wax ring properly.
Step 4: Secure the Flange to the Floor
- Once the flange is fitted to the pipe, position it so the bolt slots are parallel to the wall.
- Using a drill, secure the flange to the subfloor with rust-proof screws . Avoid using drywall screws, as they will rust and fail over time.
Step 5: Set the New Wax Ring and Toilet
- Place a new wax ring (with a plastic horn) on the bottom of the toilet horn, or set it directly on the flange.
- Remove the rag from the drainpipe. Carefully lower the toilet straight down over the flange bolts, ensuring you do not shift it sideways.
- Press down firmly on the toilet to compress the wax ring. You may need to sit on the toilet to ensure full compression.
Step 6: Secure the Toilet and Reconnect
- Place a washer and nut on each toilet bolt and tighten them alternately and evenly. Do not over-tighten, as this can crack the toilet base.
- Reconnect the water supply line and turn the water back on.
- Allow the tank to fill and flush the toilet several times, checking carefully for any leaks around the base.
- Finally, apply a bead of silicone caulk around the base of the toilet (leaving the back open to reveal any future leaks) for stability and cleanliness.
Pro Tips and Best Practices
- Flange Height is Critical: The flange should always be installed on top of the finished floor. If it’s too low, it will cause an inadequate seal and leaks.
- Protect Bolt Slots: If installing a flange before the final flooring is down, cover the bolt slots with painter’s tape to prevent mortar or debris from clogging them.
- Use a Test Plug: During a remodel, use a mechanical test plug in the flange to prevent sewer gases from escaping and debris from falling in.
- When to Use a Repair Ring: If the drain section of the flange is intact but the top ring is cracked, a repair ring can be installed over the old flange with screws and silicone, saving time and effort.
FAQs – Frequently Asked Questions
Q: Can I replace a closet flange without removing the toilet?
No, the toilet must be completely removed to access and replace the closet flange properly.
Q: What is the difference between a wax ring and a wax-free seal?
A traditional wax ring is inexpensive and creates a reliable seal by compression. Wax-free seals (often made of rubber) are reusable and less messy, which can be helpful for DIYers who may need to adjust the toilet during installation.
Q: My flange is below the tile floor. What should I do?
A flange that is recessed too deep will not seal properly. Use a flange extension kit to build up the height until it is flush with or slightly above the finished floor .
Q: How do I know if I need a full replacement or just a repair ring?
Inspect the drainpipe section of the flange. If it is cracked, broken, or heavily corroded, a full replacement is necessary. If only the top mounting ring is damaged, a repair ring is a suitable and faster solution .
Q: Should I caulk around the base of the toilet?
Yes, caulking prevents water from seeping under the toilet during mopping or spills. However, leave the back portion uncaulked so that any leak from the base will be visible immediately, rather than being trapped.
Q: What type of screws should I use to secure the flange?
Always use rust-proof screws, such as stainless steel or brass. Standard steel or drywall screws will corrode when exposed to moisture, leading to a loose flange and a wobbly toilet .
Conclusion
Replacing a closet flange is a manageable DIY project that requires patience, the right tools, and careful attention to detail. By following this step-by-step guide, you can restore a stable, leak-free connection for your toilet, protecting your bathroom floor from water damage and ensuring a safe, odor-free environment. Remember, the key to a successful, long-term repair is choosing the correct flange for your plumbing system and ensuring it is installed at the proper height on the finished floor. If you encounter a complex situation, such as a damaged lead pipe or significant subfloor rot, do not hesitate to consult a licensed professional plumber.
